A visit to the world's largest limestone quarry

The Calcite Quarry in Rogers City is the largest in the world. This year, the quarry is celebrating its 100th-year of continuous operation and has shipped 880,943,995 tons of stone since it opened in 2012. On Friday August 19, I was fortunate to be able to participate in a tour of the facility offered by Carmeuse, the current owners of the facility. Here are some of the photos a took during the tour -  and fear not - there is a historic aid to navigation involved!



We boarded school buses at the Great Lakes Lore museum in Rogers City for the short drive to the south end of town, through the security gates and down to the working face of the quarry.

It is always possible to view the quarry from the viewing station on the quarry rim which is the white structure in the photo above, however, public tours of the plant are limited to one day a year.

The limestone is loosened by drilling and inserting explosive charges, and is then scooped up by a loader and dumped into trucks for transport out of the quarry for further processing. Here two trucks await their turn with the loader at the current working face.

The Cat G994F loader empties a shovel full of stone into one of the waiting Cat 789B trucks

Our school bus gives a good idea of the massive size of the Caterpillar G994F loader. This loader was purchased new in 2007 at a cost of 3.25 million dollars. They have a 16 cylinder engine which outputs 1,577 horsepower and consumes approximately 43 gallons of diesel fuel an hour.

The tires on the 994F loader are 13 feet in diameter and cost $54,000 each. The front tires are outfitted with chains to protect them from rock cuts. The chains themselves cost $72,000 per set - this is expensive equipment!

These tour participants standing beside one of the tires gives a good sens of just how large a 13 foot diameter tire is!

The bucket has a 25 cubic yard capacity and holds approximately 33 tons of stone. It takes seven passes to fill one of the quarry's huge Cat 789B trucks.

A Cat 789B makes its way toward the loader. These trucks hold have 1,771 horsepower V-16 engine, with a capacity of 195 tons of stone, carry 851 gallons of diesel fuel and run at a top sped of 35 miles per hour whether empty of full. At a cost of $2.5 million dollars a piece, even the truck's tires have a price tag of $19,000 each.

The Cat 789B pulled up in front of us, shut off its engine and the driver descended from his cab so we could get a close up view of the monster vehicle.

The Cat 789B stands 26 feet 9 inches high and 25 feet wide. The size of this man standing at the front bumper gives a good idea of the size of these massive vehicles.

After making their way out of the quarry, the loaded trucks buck up tho this building which houses the primary crusher. This building was erected in 1921 and contains 2 60-inch crushers which take the large stone and break it into pieces approximately 5" in diameter.

Here is the view inside the primary crusher building. The truck has backed into the dump area where it lifts its bed and disgorges its 195 ton load into the first crusher. The stone is them lifted by chain conveyor into the second crusher where it is crushed to yet smaller diameter.

Here is the view down into the second crusher - watch your step! After passing down through the crusher, the stone falls onto a conveyor below the building where it is transported to the top of the Screen House.

Here we see the tall Screen House and the two conveyors which come from beneath the primary crusher. Largest diameter stone is separated in the intermediate gray separating building and conveyed out by the conveyors to the left. Smaller stones continue up the conveyors into the Screen House where they pass from floor to floor falling though progressively smaller screens. They are then moved by a series of conveyors, augurs and chutes to storage piles for eventual shipment.

Here we see a conveyor, discharge augur and chute depositing larger diameter stone in a large pile to the left of the Screen House. We observed that it takes approximately one minute from the time the stone is dumped in the primary crusher to pass through the initial sorting screen and onto this pile.

Another conveyor, discharge augur and chute deposits a finer grade of stone on a pile on the opposite side of the Screen House. The concrete retaining wall and door serve as the service entrance to the conveyors which are located beneath the pile and carry the stone out to the dock to vessels waiting to transport the material.

Here we see one of the conveyor tubes onto which the stone is piled. Openings along the top of the tube allow the stone to fall through into the conveyor to an augur at the end which carries the material to the hoppers for loading into vessels.

We were fortunate that not only was there a vessel taking on stone in the harbor when we were there, but that it was the ARTHUR M ANDERSON - the last vessel to communicate with the EDMUND FITZGERALD and one of the first vessels to head back into Lake Superior to search for potential survivors.

Here we see stone being loaded into the holds of the ANDERSON. The conveyor from which the stone is pouring can be moved in and out to distribute the load equally within the vessel's holds. Good communication between the deck boss and the conveyor operator are critical to ensure that this operation is conducted both efficiently and safely.

Once loaded, the ANDERSON will head out past the breakwater into the azure waters of Lake Huron and make her way downbound for Buffalo where she is scheduled to unload. There's our aid to navigation on the end of the breakwater!

The Calcite Breakwater light was established in 1928 and consists of a standard skeletal cast iron tower, typical of the era. With its light standing at a focal plane of 49 feet, it is visible for a distance of 14 miles in clear weather, and is indispensable to mariners seeking to enter or depart the quarry's harbor after dark. (Note, this photo was not taken during our tour, but was taken during a GLLKA lighthouse excursion from Mackinaw City to Alpena a couple of years ago, on a much cooler day!)

 If you would like to take a similar tour of the Calcite Quarry, be sure to keep an eye on the Great Lakes Lore Maritime Museum's website over the next year. Tours are offered once a year around the middle of August ever year. Here's a link the the museum's website. Just keep checking the "Events" link.

http://www.gllmm.com/

180th Anniversary of the first lake lightship

With the opening of the Erie Canal to Buffalo in 1825, westbound expansion on the Great Lakes increased exponentially. The dangers represented by Waugoshance Shoal which lurked off the western entry to the Straits likewise represented an increasing threat to mariners threading their way through the area.

The opening of the Erie Canal in 1825 had an incredible impact on western expansion through the Great Lakes

Responding to a cry from the maritime community, Congress passed an appropriation of $10,000 to build a lightship to mark the shoal on March 3, 1831. Bids for construction of the vessel were advertised in maritime newspapers that May, and the Detroit shipyard of Oliver Newberry was selected to build the vessel after the closing of bids in July. The workers at Newberry’s yard began construction soon thereafter. While no plans of the vessel have surfaced to this time, bid specifications from the May 12, 1831 issue of The Detroit Courier provide us with a fair idea of the vessel’s dimensions and how she must have appeared:



With a hull of white oak clad in copper, the vessel stood 46’ long between the perpendiculars*, had a keel length of 36’ and a beam of 17’ 9”.  Her large trunk cabin was built up through the deck to provide sufficient headroom for a crew of six men, and was outfitted with berths, lockers and a galley. The vessel’s twin masts consisted of 42’ long yellow pine square timbers mounted parallel to each other in a fore and aft orientation. Mounted on a wheeled carriage, the ship’s all-important lantern rode vertically on wheels against the inner surfaces of these two masts. Ropes attached to the carriage passed over pulleys at the top of each mast, and were fastened to counterweights which passed down grooves in the sides of the mast, allowing for simple and fast raising and lowering of the lantern for maintenance. Attached to the aft mast of this pair, a single trysail mast served to power the vessel to and from her station.

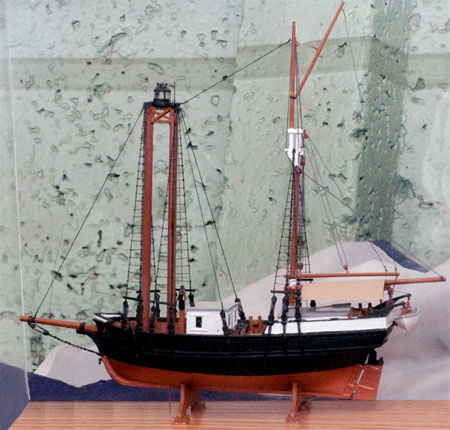

This model of the Louis McLane was built to reflect the original written specifications

A mooring ringbolt, formed from 1¼-inch diameter iron, was sturdily attached to the vessel’s keel at the bow and served to attach sixty fathoms of 7/8-inch chain to an 800-pound mushroom anchor in order to anchor the vessel at her station. To serve the vessel during fog and thick weather, a manually-operated four hundred-pound bell was also suspended in a small belfry on deck.

The vessel was moored to a mushroom anchor similar to that above

Completed at a final cost of $7,350.00, the vessel was likely completed prior to May 1, 1832 in accordance with the contract requirement. Christened “Louis McLane” in honor of the Secretary of the Treasury at the time, she was likely towed to the Straits and placed on her station off Waugoshance Shoal on an unspecified date later that year.

The vessel was named Louis McLane who was serving as Secretary of the Treasury

Typical of the problems encountered by the vessel was the situation reported by Lieutenant James T. Homans on his visit to The Straits during his 1838 inspection of lighthouses of the Western Great Lakes. In his report to the Fifth Auditor of the Treasury, Homans stated that on his arrival in Mackinaw he found the lightship had been under repair in the harbor since being thrown on a beach after being torn from her anchorage during the 1837 navigation season. Finally returned to her station on the 20th of September 1838, she was again driven off a few short weeks later, leaving the deadly shoal at Waugoshance unmarked for almost a full year.

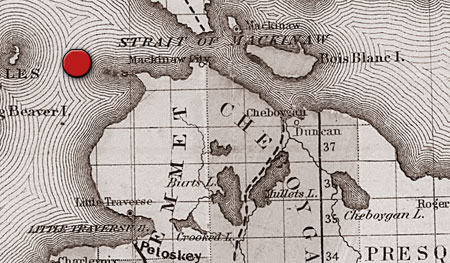

The approximate location where the Louis MacLane was anchored
